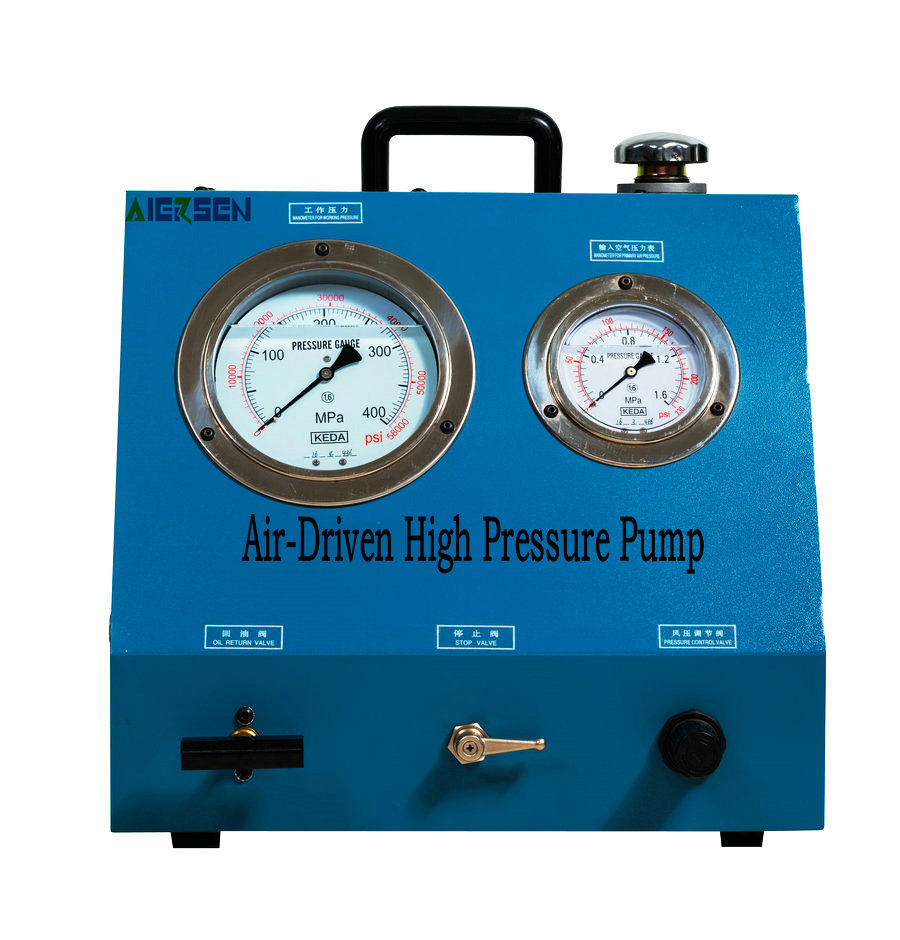

Air-Driven High Pressure Pump
Model: AHP3500
Pressure:3500Bar
1、Hydraulic tools for hydraulic power
2、With automatic pressure compensation
3、Stable pressure retention performance
4、Portable design
5、Simple operation, explosion-proof design can be used in special working conditions
6、Use medium water or oil
Technical data：
Weight: | Approx. 30 Kg |
Dimensions: | 490×430×480 mm |
Oil output pressure: | Max. 350 MPa @ 0.6 Mpa air input |
Pump working speed: | Approx. 400 cycles/min @ 0.7 Mpa air input |
Air consumption: | Approx.1050 l/min @ 0.6 Mpa air input |
Tank capacity: | Approx. 8 L |
Min. flow: | Approx. 0.8 L/min |
Air inlet: | G1/2 standard internal thread |
Pressure oil outlet: | G1/4 standard internal thread |
