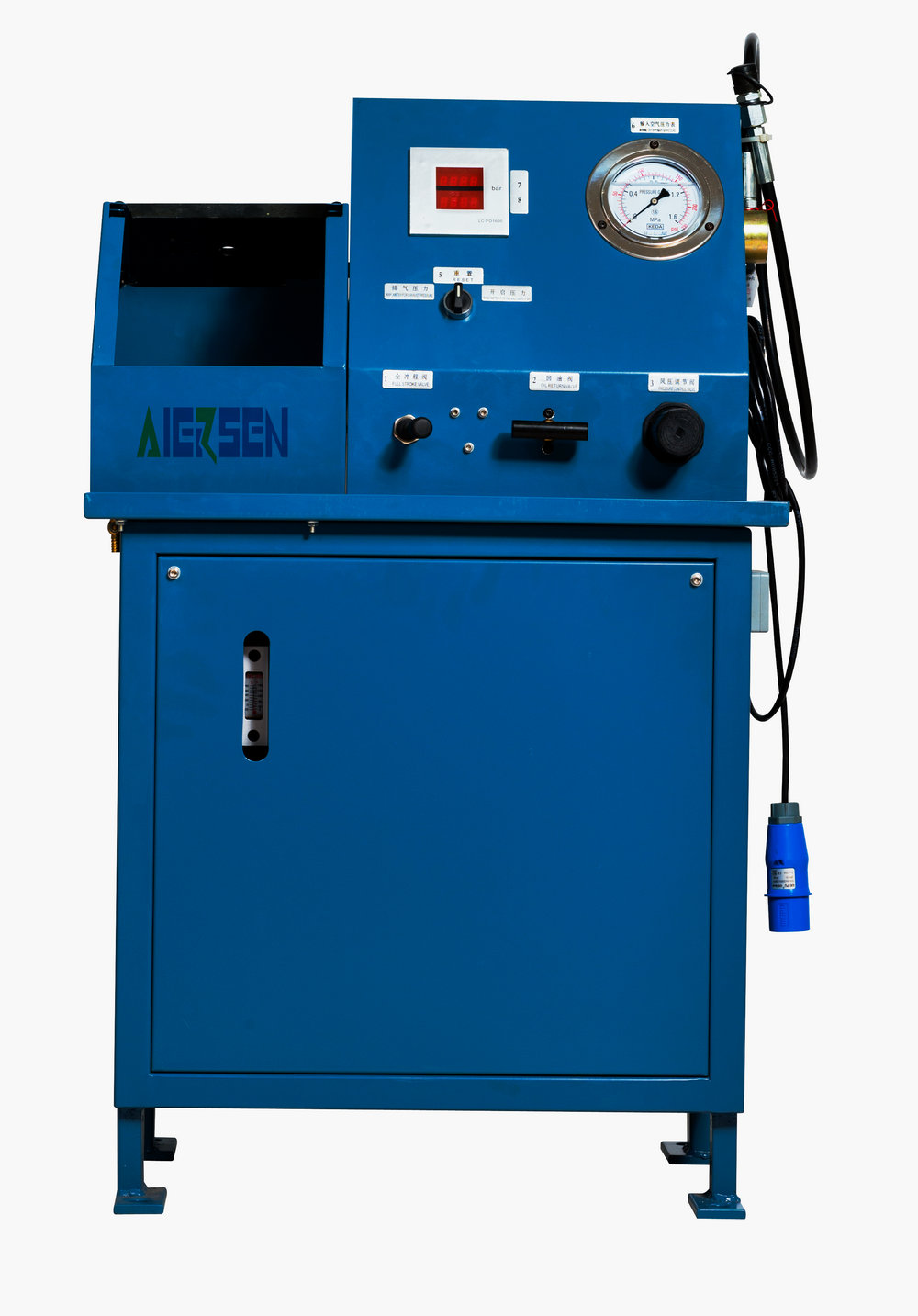

FUEL VALVE TEST PUMP UNIT

                                                HDP1100-D2

Injector test bench is mainly used for measuring the spray condition of modern high-power marine diesel engine. It is an indispensable testing tool for high-power diesel engines. It is suitable for Mann 35-98 host.

  Main technical date

Output pressure: Max.80MPa at 0.7MPa air input.

Air consumption: 12 Liters/cycle at 0.7MPa air input.

Max. flow of fuel oil:40ML/cycle at an air input of 0.4Mpa

Pumping speed: 30cycle/Min at 0.4MPa air input (no output pressure).

Tank capacity: 8L

Dimension:700x450x1120mm

Weight:77kg
